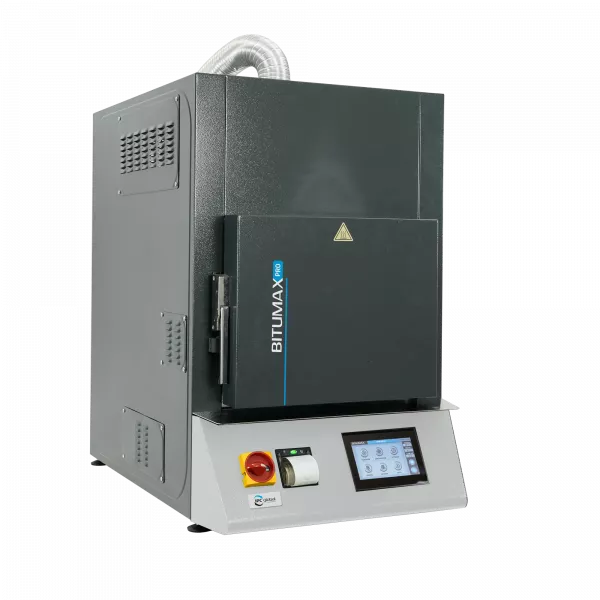

Binder content is the first check on any asphalt mix — too little and the road cracks and ravels, too much and it ruts and bleeds. Traditional solvent extraction gives accurate results, but it means buying, storing and disposing of chemical solvents. The BITUMAX Pro Asphalt Binder Analyzer Kuwait laboratories use removes that step completely: the sample goes into the oven, and the result comes out automatically.

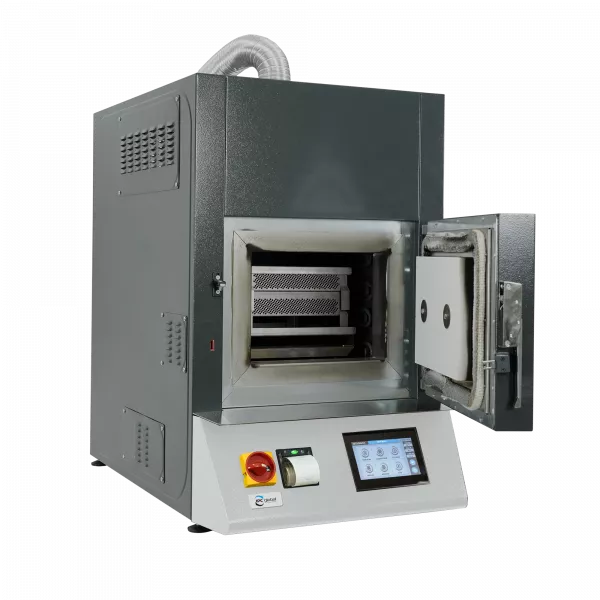

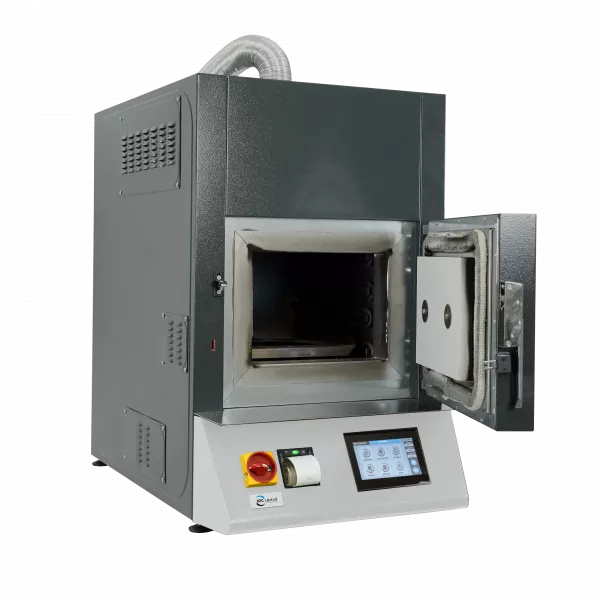

The operator loads the sample basket, selects a test profile and starts the cycle. The oven heats the sample up to 650 °C while continuously weighing it. When the weight stops changing, the machine calculates the binder content on both the mix and the aggregate, and prints or stores the result. The clean aggregate left in the basket is ready for gradation testing.

Key system highlights

• Solvent-free testing: no chemicals to buy, handle or dispose of, giving a safer and cleaner laboratory.
• Fast results: a complete test in under 40 minutes, allowing more than 12 tests per day.
• Continuous weighing: built-in scale monitors weight loss throughout the test and calculates binder content automatically.
• Clean exhaust: an independent afterburner, adjustable up to 950 °C, ensures complete combustion of fumes.
• 7-inch colour touchscreen: real-time graphs of weight loss and binder percentage, with up to 9 custom test profiles.
• Programmable preheating: set a delayed start so the oven is at temperature when the shift begins.
• Easy data handling: on-board printer, USB, Ethernet and RS232 connections, and internal memory for thousands of tests.
• Almost maintenance-free: designed to run test after test without interruption.
• Complete accessory kit included: double sample basket, safety cover, extraction fork and 3 m of metal exhaust ducting.
