DWT Universal Double Wheel Tracker Kuwait

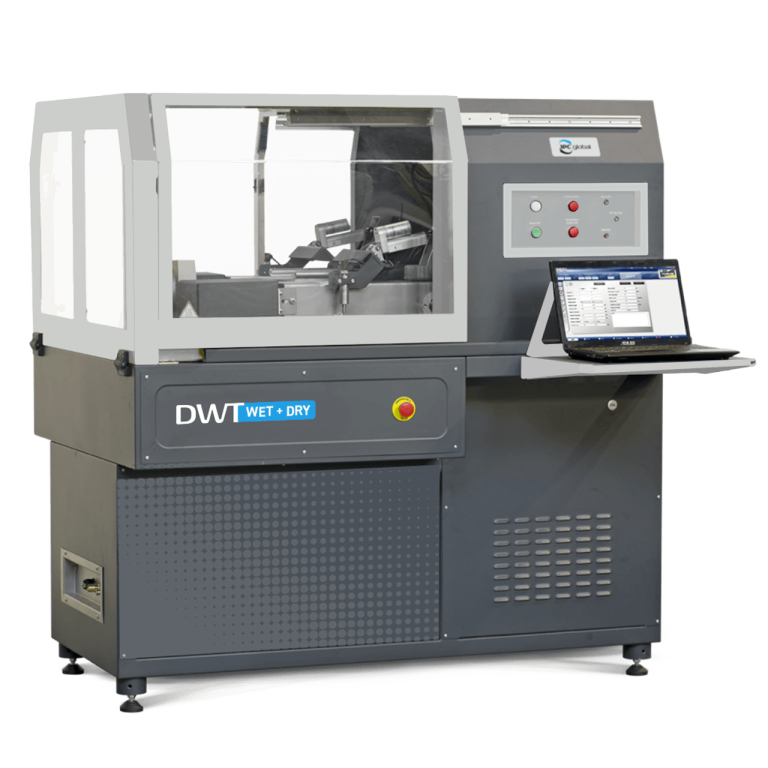

DWT Universal Double Wheel Tracker Kuwait is Burgan Equipment Co.'s wheel tracking system for measuring the rutting resistance and moisture susceptibility of hot mix asphalt. Built by Controls Group, it is supplied with both stainless steel and rubber wheels and tests in air or water, so a single machine covers both AASHTO T324 Hamburg testing and EN 12697-22. Two loaded wheels run back and forth over two specimens at once while built-in transducers record rut depth throughout the test. Burgan supplies, installs and supports the DWT Universal for highway, research and quality control laboratories across Kuwait.

Highlights & Features

Specifications & Models

Accessories & Standards

Key system highlights

DWT Universal Double Wheel Tracker Kuwait: one machine for both AASHTO and EN wheel tracking tests.
Rutting and moisture damage: measures permanent deformation and stripping, key risks for asphalt roads in Kuwait’s heat.
Two wheel types included: stainless steel wheels for AASHTO T324, rubber tyres for EN 12697-22.

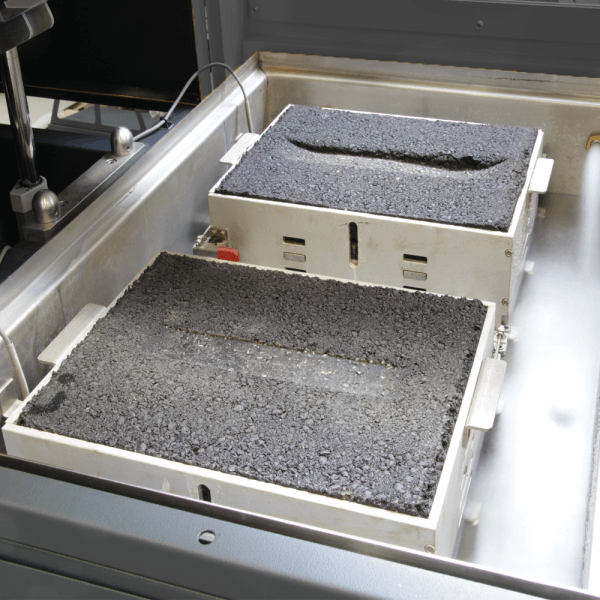

Air or water testing: built-in temperature-controlled cabinet for both conditions.
Two specimens at once: fully automatic testing on one or two samples.
Accurate temperature control: ambient to 80 °C, ±0.5 °C in both air and water.
Precise rut measurement: transducers with 50 mm travel and 0.01 mm accuracy, aligned with each wheel’s centre.
Standard-compliant motion: sinusoidal wheel movement and rut depth measured at 11 defined points to AASHTO T324-19.
Variable speed: 20 to 30 cycles per minute over 230 mm wheel travel.
Automatic water filling and levelling: no manual checking of water level during the test.
Motorized wheel lifting: raises the wheel assembly at the end of the test for easy slab removal.
Flexible samples: slabs, 150 mm gyratory cylinders, and 200 mm, 8″ or 10″ cores.
Programmable start: preheating and test start can run without an operator present.
Stainless steel construction: used throughout the machine, not only on wetted parts.

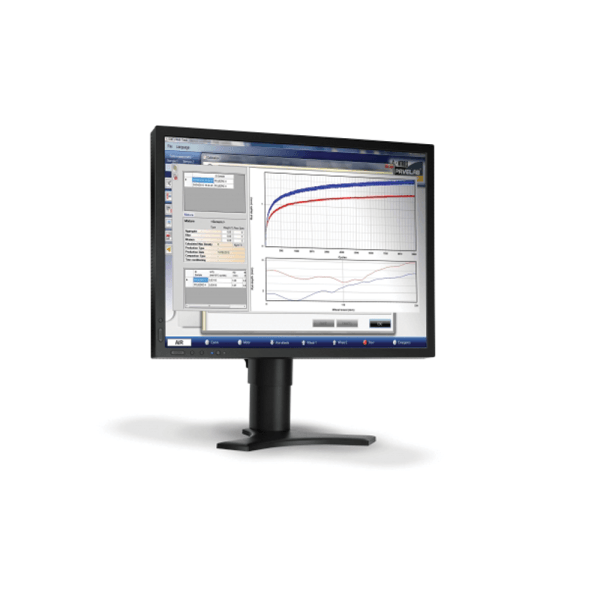

PC and software included: test control, results database and multi-test analysis.

Technical Specifications

Function: Rutting resistance and moisture susceptibility testing of hot mix asphalt.
Standards: AASHTO T324, EN 12697-22, TxDOT TEX-242-F.
Testing Mode: In air and in water.
Displacement Motion: Moving wheel arm, fixed table.
Wheel Travel: 230 mm.
Wheel Speed: 20 to 30 cycles per minute (40 to 60 passes).
Wheels: Stainless steel 203 x 47 mm and rubber tyre 203 x 50 mm.
Wheel Load: 700/705 N by weights (B models), or adjustable 700 to 1,500 N in 100 N steps (D models).
Temperature Range: Ambient to 80 °C, ±0.5 °C.
Air Heating: Three 1,200 W electronically controlled blowers.
Water Heating: Three 1,500 W heaters, recirculating pump, automatic level control.
Rut Depth Transducers: 0 to 50 mm, 0.01 mm accuracy.
Slab Thickness: 40 to 100 mm, adjustable in 10 mm steps.
Moulds: Ordered separately.
Power Rating: 5,500 W.
Overall Dimensions (W x D x H): 1,540 x 1,020 x 1,600 mm.
Weight: Approx. 600 kg.
PC and Software: Included.

Models

Accessories

78-PV3UP10 Independent lifting system: lifts one wheel when its specimen reaches the rut target while the other keeps testing.
78-PV3UP20 Additional temperature probes: pair of probes to monitor both sample temperatures.

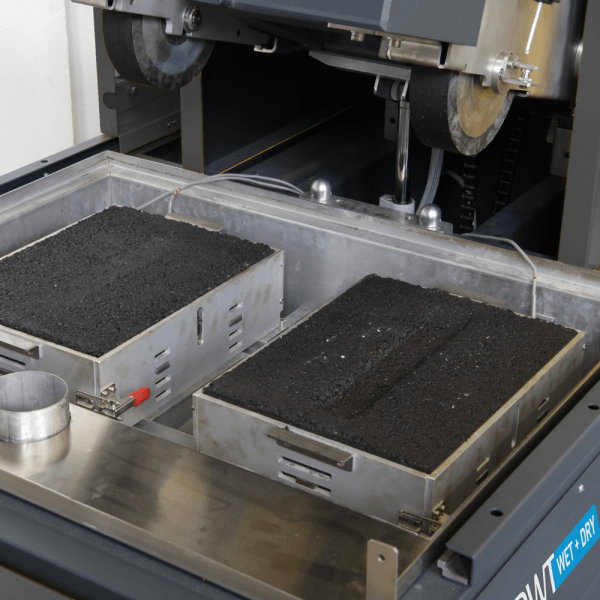

78-PV3/001 Slab moulds: set of two, 400 x 300 mm.
78-PV3/002 Slab moulds: set of two, 360 x 300 mm (for 320 x 260 mm slabs).
78-PV3/011 and 78-PV3/012 Deep slab moulds: for D models, maximum sample height 120 mm.

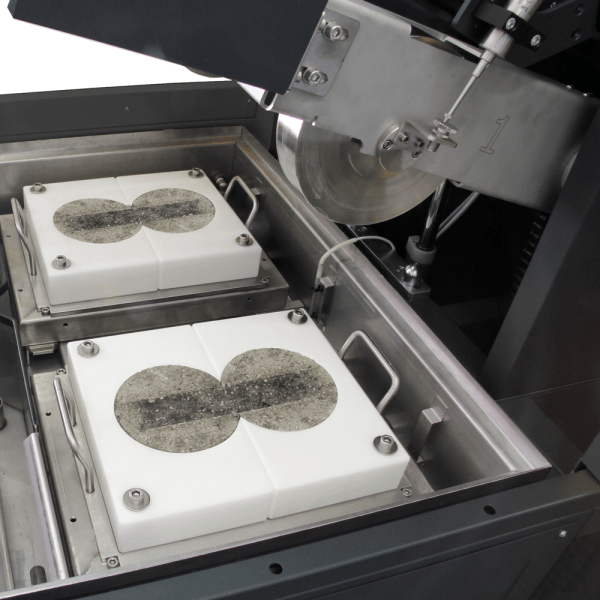

78-PV3/005 Cylinder trays: for 150 mm gyratory samples to AASHTO T324.
78-PV3/003 Mould adaptors: for 150 mm cylindrical samples.
78-PV3UP40 Upper cover panel: transparent closing panel (not for D models).
78-PV33B00/CAL Calibration certificates: traceable certificates for load, transducers, wheel speed, tyre hardness, and air and water temperature.

Standards

- AASHTO T324: Hamburg wheel-track testing of compacted asphalt mixtures
- EN 12697-22: wheel tracking test for bituminous mixtures
- TxDOT TEX-242-F: Hamburg wheel tracking test
- Confirm the exact method your client or ministry specification requires before ordering.
