ASPHALT & BITUMEN TESTING EQUIPMENT
AMPT PRO Asphalt Mixture Performance Tester Kuwait

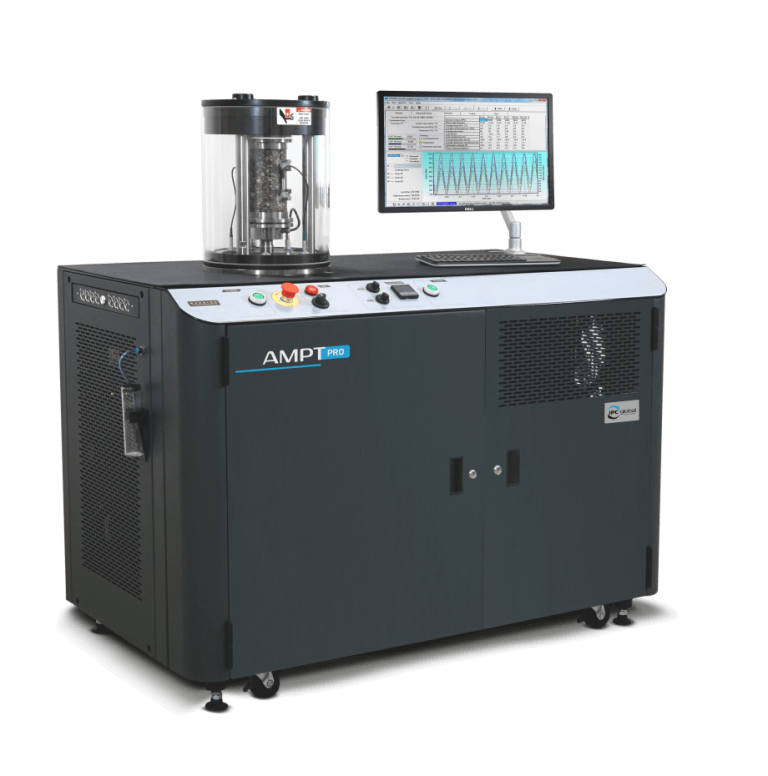

AMPT PRO Asphalt Mixture Performance Tester Kuwait is Burgan Equipment Co.'s servo-hydraulic system for measuring how asphalt mixes will actually perform on the road. Built by IPC Global, part of Controls Group, it runs the three key performance tests developed through NCHRP research — dynamic modulus, flow number and flow time — in full compliance with AASHTO T378. Laboratories use it to characterise mix stiffness, predict rutting resistance and supply inputs for mechanistic-empirical pavement design. Burgan supplies, installs and supports the AMPT PRO for highway and research laboratories across Kuwait.
Kuwait's summer pavement temperatures make rutting one of the biggest risks for any asphalt road. Volumetric mix design alone cannot show how a mix will behave under heavy traffic at high temperature — performance testing can. The AMPT PRO Asphalt Mixture Performance Tester Kuwait laboratories rely on measures exactly that, giving engineers real data on stiffness and permanent deformation before a mix goes onto the road. The system combines a compact load frame, a temperature-controlled testing cell and an integrated controller in one unit. The operator places the specimen, selects the test and the machine controls load, temperature and confining pressure automatically, recording every channel in real time.
Key system highlights
- Three core performance tests: dynamic modulus (|E*|), flow number and flow time, as standard.
- Powerful, quiet hydraulics: an inverter-driven hydraulic power supply and labyrinth bearing actuator deliver up to 19 kN of force at frequencies up to 100 Hz.
- IMACS2 control system: third-generation integrated multi-axis controller with 24-bit data acquisition for clear, repeatable results.
- Plug-and-play transducers: load cells and on-specimen LVDTs swap quickly between test set-ups.
- Design software ready: data output is compatible with FHWA FlexMAT™ and FlexPAVE™ for pavement design and analysis.
- Expandable: optional jigs add uniaxial fatigue (S-VECD), Semi-Circular Bend, overlay, indirect tensile dynamic modulus and iRLPD testing.
- Compact footprint: suitable for fixed laboratories and mobile testing facilities, with an optional integrated low-noise air compressor.
The AMPT PRO Asphalt Mixture Performance Tester Kuwait model is supplied complete with the IMACS2 controller and standard testing platens, ready for dynamic modulus, flow number and flow time testing.
Technical Specifications Grid:
- Function: Performance testing of asphalt mixtures — dynamic modulus, flow number and flow time to AASHTO T378 and NCHRP 9-29.
- Frequency Range: Up to 100 Hz.
- Actuator: Labyrinth bearing type, 30 mm stroke (±15 mm).
- Specimen Sizes: 100 x 150 mm nominal; also 50 x 135 mm and 38 or 50 x 110 mm with small-diameter accessories.
- Temperature Range: -10 °C to +70 °C, accuracy ±0.2 °C at the specimen.
- Cooling Rate: Typically reaches +4 °C in under 30 minutes at +23 °C ambient.
- Testing Cell: 305 mm diameter x 420 mm height.
- Confining Pressure: 0 to 225 kPa.
- Control & Data Acquisition: IMACS2, 24-bit resolution, 200 kHz simultaneous sampling, up to 8 channels.
- Computer Control: Optional all-in-one touchscreen PC.
- Noise Level: Below 70 dB at 2 m.
- Power: 220–240 V, 50 Hz, single phase (17 A; 22 A with compressor) or 208 V, 60 Hz, single phase (20 A; 25 A with compressor).
- Air Supply: Clean dry air at 450–800 kPa, 2 L/sec, or optional integrated compressor.
- Dimensions (h x w x d): 1,359 x 1,350 x 739 mm.
- Weight: 275 kg including oil.
Model:
- 79-PV71A12/I2 — AMPT PRO Asphalt Mixture Performance Tester with inbuilt IMACS2 controller, 208–230 V, 50–60 Hz, single phase.
Accessories
- Small-diameter kits: 50 mm specimen platen set and LVDT gauge point fixing jigs for 38 mm and 50 mm specimens
- Uniaxial fatigue gluing jig: for 75, 50 and 38 mm specimens
- On-specimen LVDT assemblies: guided spring-core LVDTs with target clamps
- Universal proving ring: for system verification
- Integrated air compressor: with air dryer, in 50 Hz and 60 Hz versions
- Consumables kit: gauge points, adhesive, O-ring, sealing rings and rubber membranes
- All-in-one touchscreen PC: for complete on-machine control
Standards
The AMPT PRO is designed to the following methods:
- AASHTO T378 / TP79 — dynamic modulus and flow number
- AASHTO TP132 — dynamic modulus of small-specimen asphalt mixtures
- NCHRP 9-19 and 9-29 — dynamic modulus, flow number and flow time
